Automating Robotic Pick-and-Place Calibration with Intelligent Vision Technology

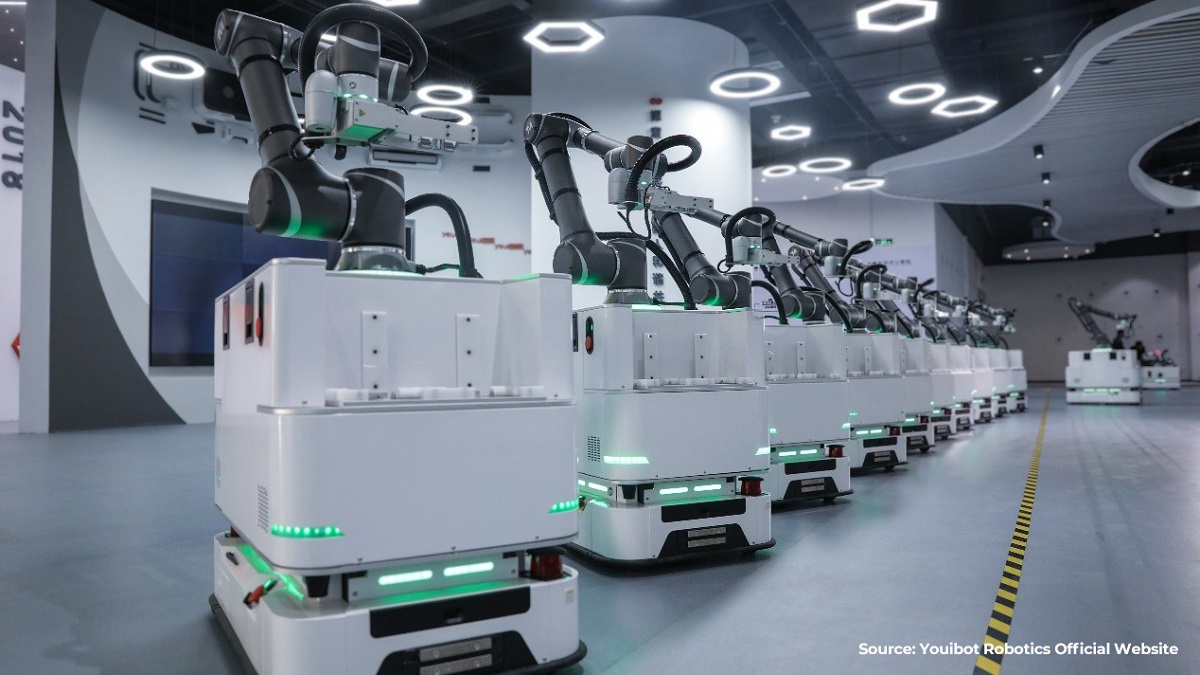

In semiconductor and advanced manufacturing environments where Autonomous Mobile Robots (AMRs) are integrated with robotic arms, accurate positioning is essential for reliable material handling. These systems commonly use TM Landmarks mounted on each slot of a multi-layer material rack (E-Rack) as positional reference points for robotic arm guidance.
During system setup, engineers traditionally teach the robotic arm the precise pick-and-place position for each FOUP slot individually. In theory, a motion path taught for one slot should be transferable across all slots within the rack. In practice, however, achieving consistent repeatability across multiple positions presents significant challenges.
Addressing Positioning Variability
As robotic arms move throughout their working envelope, small non-linear positioning errors naturally occur. At the same time, the physical placement and tilt angle of Landmarks mounted on each rack slot are rarely perfectly identical.
These small deviations can create measurable offsets during pick-and-place operations, potentially leading to positioning inaccuracies, mechanical interference, or even collisions. To maintain operational reliability, system integrators have traditionally been required to manually fine-tune every individual slot — a process that is both time-consuming and highly labor-intensive.
Intelligent Vision-Based Motion Cloning
To address these challenges, Techman Robot has developed an Intelligent Cloning Workflow designed to automate and simplify robotic motion deployment.
The solution introduces a dedicated calibration jig equipped with its own Landmark. Engineers teach the robotic arm a single optimized pick-and-place position using this jig. The robot’s integrated smart vision system then captures and compares images of both the jig Landmark and the Landmark installed at each target slot.
Using this visual reference data, the system automatically calculates the positional relationship between the two points and transfers the calibrated pick-and-place coordinates to the next slot without requiring additional manual teaching.
Significant Reduction in Deployment Time
The Intelligent Cloning Workflow enables pick-and-place accuracy to be maintained within ±1 mm while dramatically reducing commissioning time.
In a typical installation containing 100 rack slots, conventional manual tuning would require approximately 10 minutes per slot, resulting in a total setup time of around 1,000 minutes.
Using the automated workflow, the initial teaching process requires only 10 minutes, while each remaining slot requires approximately one minute for automated vision recognition and coordinate transfer. Total deployment time is reduced to approximately 110 minutes — representing a 90% reduction in commissioning time while also minimizing the potential for human error.
Enabling Scalable Precision Automation
By eliminating repetitive manual adjustment processes, the Intelligent Cloning Workflow provides manufacturers with a faster and more scalable approach to robotic deployment in complex multi-slot environments.
The solution allows enterprises to achieve rapid motion replication, improved positioning consistency, and more efficient system commissioning, supporting higher productivity and precision across advanced automated manufacturing operations.
For more information: www.tm-robot.com
