Laser Tracker Technology Improves Inspection of Rail Vehicle Shock Absorber Mounts
Shock absorbers are essential components in the bogie assemblies of locomotives and rolling stock, helping to dampen vibration and ensure stability, passenger comfort, and operational safety during high-speed service. Equally critical are the shock absorber mounts that connect these dampers to the bogie frame. As key load-bearing structures, their geometric accuracy and spatial positioning directly influence shock absorber performance and the overall behavior of the suspension system.
As rail operators continue to push the boundaries of speed, capacity, and reliability, maintenance requirements for these components have become increasingly demanding. During major locomotive overhauls, shock absorbers are typically removed, disassembled, and inspected to restore their intended performance. At the same time, the shock absorber mounts must be evaluated for fatigue-related deformation, wear, and weld defects that may have developed during years of service. Because the mounts serve as the installation reference for the shock absorbers, precise three-dimensional inspection is essential to verify their condition and ensure continued operational safety.
Measuring the Geometry That Matters
Inspection of shock absorber mounts involves several critical geometric measurements. Maintenance teams must verify the flatness of mounting surfaces, which directly affects how loads are distributed once the shock absorber is installed. Excessive deviation can result in misalignment, localized stress concentrations, and premature component wear. The positional accuracy of mounting holes and slots must also be assessed to ensure the shock absorber can be installed correctly. Even small deviations can increase assembly time or prevent installation altogether.
In addition, the coaxiality and parallelism of mounting holes must be maintained to avoid introducing unwanted stresses that could affect shock absorber performance and service life. Finally, the overall spatial position of the mount relative to the bogie frame must be compared with the original CAD design to confirm that manufacturing and maintenance tolerances remain within specification.
The Limitations of Conventional Inspection Methods
Traditionally, these inspections have relied on tools such as dial indicators, calipers, height gauges, and coordinate measuring machines. While effective for certain measurements, these methods often struggle to meet the demands of modern rail maintenance. Inspection procedures can be labor-intensive and time-consuming, requiring multiple operators and extensive manual data collection. Conventional measuring tools also provide limited capability for capturing complete three-dimensional coordinate information, making it difficult to evaluate complex geometric tolerances efficiently.
Accessibility presents another challenge. Shock absorber mounts frequently contain recessed features and mounting holes located 200 mm to 300 mm deep within the structure. These areas can be difficult to access using traditional instruments or articulated arm measuring systems. Furthermore, inspection data is often recorded manually, increasing the risk of human error and making direct comparison with CAD models cumbersome.
Laser Tracker Technology Delivers a Digital Alternative
To address these challenges, rail maintenance facilities are increasingly adopting laser tracker technology. The API Radian laser tracker provides a high-precision, large-volume measurement solution capable of performing comprehensive three-dimensional inspections of shock absorber mounts and other rail vehicle components.
The system delivers micron-level measurement accuracy, enabling reliable verification of critical form and positional tolerances. With a measurement radius of up to 80 meters, a single setup can cover an entire bogie assembly and, in many cases, significant portions of a rail vehicle without the need for repositioning. Data can be collected at rates of up to 1,000 points per second, dramatically reducing inspection times while increasing measurement confidence.
When paired with the API vProbe wireless probing system, the laser tracker can also access hidden or difficult-to-reach measurement locations. Probe extensions ranging from 50 mm to 500 mm allow operators to inspect deep mounting holes and recessed features that would otherwise be challenging to measure accurately. The portability of the system further enhances its suitability for rail maintenance environments, where measurement equipment often needs to be moved between workshops and inspection stations.

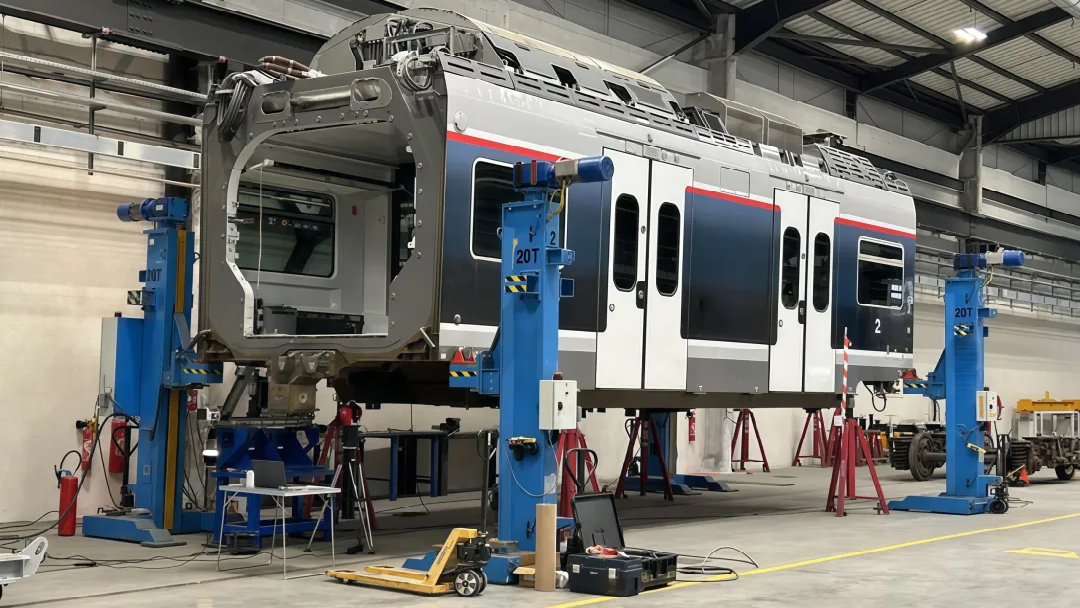

During an inspection, the laser tracker continuously tracks a retroreflective target or probing accessory as the operator measures key features. Three-dimensional coordinate data is transmitted in real time to measurement software, where geometric features such as planes, cylinders, and reference axes are created and compared directly with CAD models. The resulting deviation analysis provides a clear picture of component condition and supports repair or adjustment decisions.
Expanding Applications Across the Rail Industry
Although shock absorber mount inspection represents a valuable application, laser tracker technology is increasingly being used throughout the rail industry. Bogie manufacturers employ laser trackers for frame alignment, assembly verification, and wheelset positioning. Rail vehicle builders use them to inspect body structures, coupler mounting locations, and critical suspension interfaces. Maintenance organizations also rely on laser trackers to calibrate large welding fixtures and assembly jigs, ensuring production tooling remains within tolerance. In addition, real-time measurement capabilities enable guided alignment and positioning during assembly operations, reducing setup times and improving overall accuracy.
Supporting the Future of Rail Maintenance
As rail systems continue to evolve toward higher speeds and greater operational efficiency, the demand for accurate, traceable, and efficient dimensional inspection is only expected to grow. The geometric condition of shock absorber mounts has a direct impact on suspension performance, vehicle stability, and long-term reliability. By combining high accuracy, large-scale measurement capability, rapid data acquisition, and digital reporting, laser tracker technology provides rail operators with a practical solution for meeting these increasingly stringent maintenance requirements.
For maintenance teams seeking to reduce downtime while improving inspection quality, laser trackers offer a powerful tool for transforming traditional measurement workflows into fully digital, data-driven processes that support both operational safety and long-term asset performance.
For more information: www.apimetroloy.com
