Polytec’s FTP Measuring Module: A New Perspective on Areal Surface Metrology
In modern manufacturing, the performance and reliability of industrial components are inseparable from the precision of their machining processes. As tolerances tighten and functional requirements become more demanding, manufacturers increasingly rely on advanced surface metrology to evaluate form, roughness, and micro-scale texture—often directly on or near the production line.

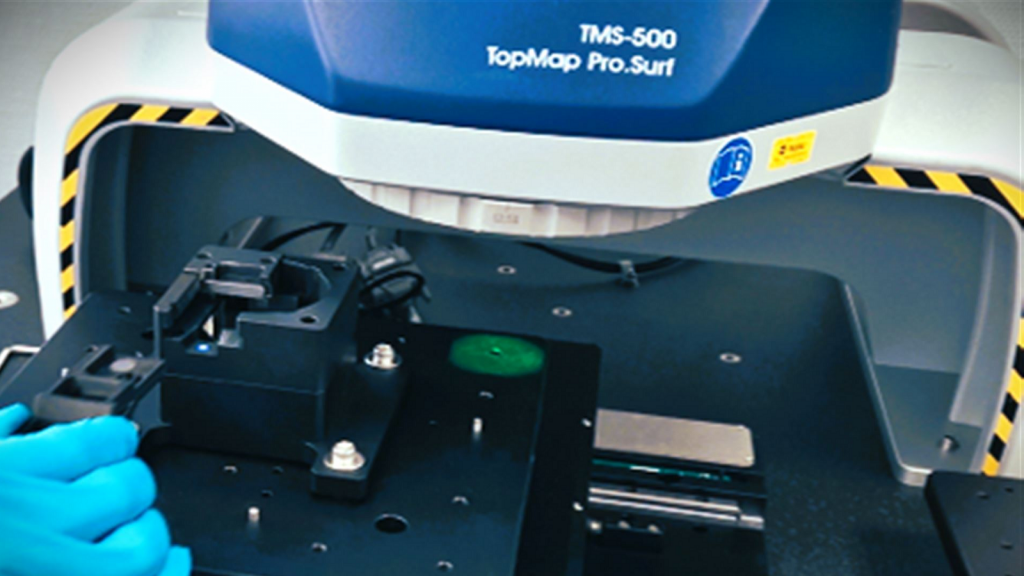

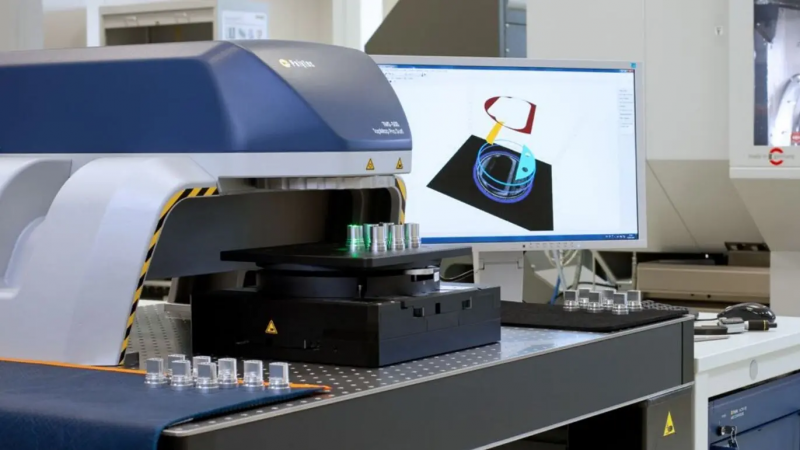

Polytec’s latest innovation, the FTP (Front-Topography-Profile) measuring module, introduces a significant advancement in this field. By enabling simultaneous measurement of both the top and bottom surfaces of a component in a single areal acquisition, the system delivers a more complete and reliable picture of surface characteristics while streamlining inspection workflows.
Moving Beyond Single-Sided Measurement
Conventional surface metrology approaches typically measure one side of a component at a time. When both front and back surfaces are critical—particularly in thin or high-precision parts—this limitation forces manufacturers into workarounds such as flipping the sample, relying on reference surfaces, or using multiple sensors. These methods increase handling, introduce alignment challenges, and ultimately add to measurement uncertainty.
The FTP module eliminates these compromises. By capturing combined top and bottom topography in a single, direct measurement, it removes the need for repositioning and ensures both datasets are acquired under identical conditions. The result is improved repeatability, reduced uncertainty, and greater confidence in the data.
A Holistic View of Surface and Form
What distinguishes the FTP module is its ability to provide a truly holistic view of a component. Rather than treating each surface independently, it allows manufacturers to analyze relationships between opposing sides—an essential factor in many functional applications.
This capability is particularly valuable when assessing part thickness variations, deformation, or parallelism, where even minor inconsistencies can impact performance. By synchronizing measurements, the system ensures that environmental and positional influences are consistent, enabling more accurate correlation of features across the entire part.
From Large-Area Form to Sub-Nanometer Detail
The FTP module bridges the gap between macro-scale geometry and ultra-fine surface characterization. It supports large-area measurements while maintaining the sensitivity required to resolve sub-nanometer textures. This dual capability aligns with the growing need in manufacturing to understand not just the overall shape of a component, but also the microstructures that influence friction, sealing, optical behavior, and wear.
Supporting Inline Quality Control
As production environments evolve toward greater automation and real-time process control, metrology systems must keep pace. The FTP module is well suited to inline or near-line inspection, reducing measurement time and minimizing manual intervention. By simplifying workflows and eliminating multiple measurement steps, it contributes to higher throughput without compromising accuracy.
Applications in Precision Engineering
The advantages of simultaneous dual-surface measurement are particularly evident in precision industries. In watchmaking and micro-mechanics, where components are extremely small and sensitive to handling, eliminating repositioning reduces the risk of distortion and error.
For sealing surfaces and shim rings, the interaction between opposing faces directly influences performance. Being able to measure both sides together improves the evaluation of flatness, roughness, and functional fit.
In optical manufacturing, surface quality on both faces of a component affects transmission and reflection characteristics. The FTP module provides a more complete assessment, supporting higher standards of optical performance.
Reducing Uncertainty at the Source
A key benefit of the FTP measuring module is its ability to address measurement uncertainty at its origin. By consolidating what were previously separate steps into a single acquisition, it reduces variability introduced by handling, alignment, and environmental changes.
This not only simplifies the measurement process but also strengthens confidence in the results—an essential factor as manufacturers push toward ever tighter tolerances.
A Step Forward for Surface Metrology
Polytec’s FTP measuring module reflects a broader shift in metrology toward integrated, high-efficiency solutions that deliver more meaningful data with fewer steps. By combining dual-surface acquisition with areal measurement and sub-nanometer sensitivity, it offers a powerful new tool for quality control in precision manufacturing.
As industry continues to demand faster, more accurate, and more comprehensive inspection methods, innovations like the FTP module will play a central role in ensuring that metrology keeps pace with production—delivering not just measurements, but deeper insight into the functional performance of every component.
For more information: www.polytec.com
