Smarter Surface Inspection Through Integrated Robotics
Specifically, the application combines a Stäubli TX2 90 six-axis industrial robot with a Mahr OptoSurf OS 500 sensor for optical analysis and a MarSurf M 310 device for tactile roughness analysis. The OS 500 sensor determines Aq parameters* and is used to verify functional surfaces, while the tactile M 310 device checks various conventional roughness parameters. Car brake discs and electric motor housing are workpiece examples that can benefot from the system.

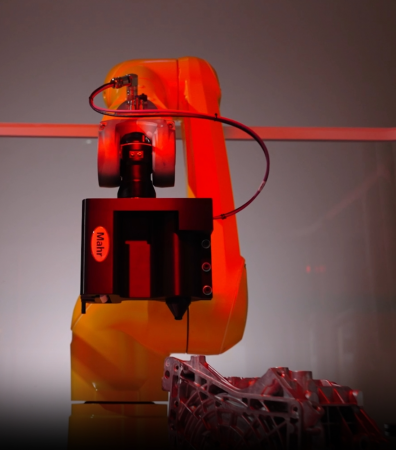

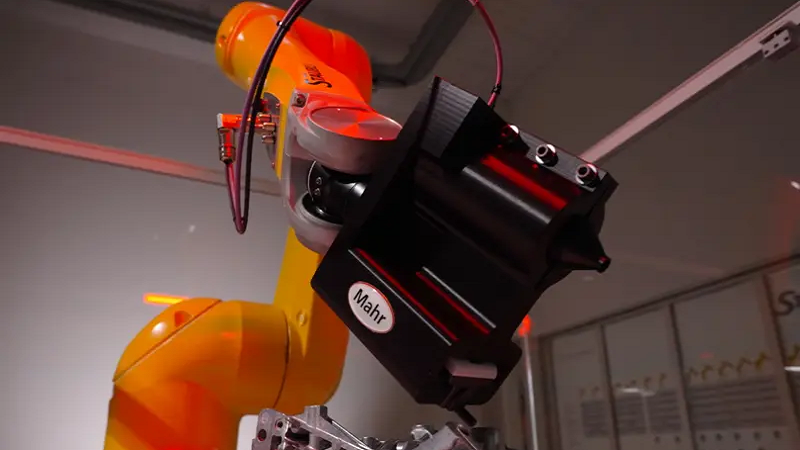

The Stäubli industrial robot positions the measuring sensor at the desired location on the component. Once the correct position has been reached, the measurement begins. When using the MarSurf M 310, the robot remains in a fixed position while the tactile device performs mobile measurements. During optical measurement with the OptoSurf OS 500 the robot moves to guide the sensor across the surface.
New concept – Comprehensive User Benefits
The combination of robotics and production metrology opens up a whole new range of applications for customers: the powerful robot not only serves as a tool for loading and unloading workpieces, but also as an active component of the measurement solution itself. The robot’s movements replace various devices that users normally employ to position their workpieces correctly. This significantly reduces the complexity of reaching all measurement points. In addition, the solution can operate around the clock, which reduces personnel costs while increasing productivity. Ultimately, the combination of both technologies simplifies the entire measurement chain – and fewer steps and operator interventions mean fewer sources of error and, in turn, more reliable measurement results.
*The Aq parameter is a characteristic value in optical surface metrology in the context of scattered light technology. It is used to evaluate the microstructure of a component and describes the intensity of the scattered light distribution.
For more information: www.metrology.mahr.com
