High-Productivity Benchtop 3D Optical Scanning for In-Process Metrology
In manufacturing today the pressure to reduce cycle times while maintaining tight tolerances continues to intensify. The demand for faster, more flexible, and production-floor-ready inspection systems is reshaping how quality control is deployed. In this context, the Optocloud S from Marposs introduces a compact yet highly capable approach to 3D optical metrology, designed specifically for high-throughput industrial plants.
Developed for fast and accurate inspection of small flat, cylindrical, and complex components, Optocloud S is a benchtop optical scanner that brings metrology-grade measurement directly into production. Rather than relying on offline laboratory inspection, it enables in-line or near-line verification of parts, significantly reducing bottlenecks typically caused by slower gauging systems.
Built for Production-Ready Digital Inspection

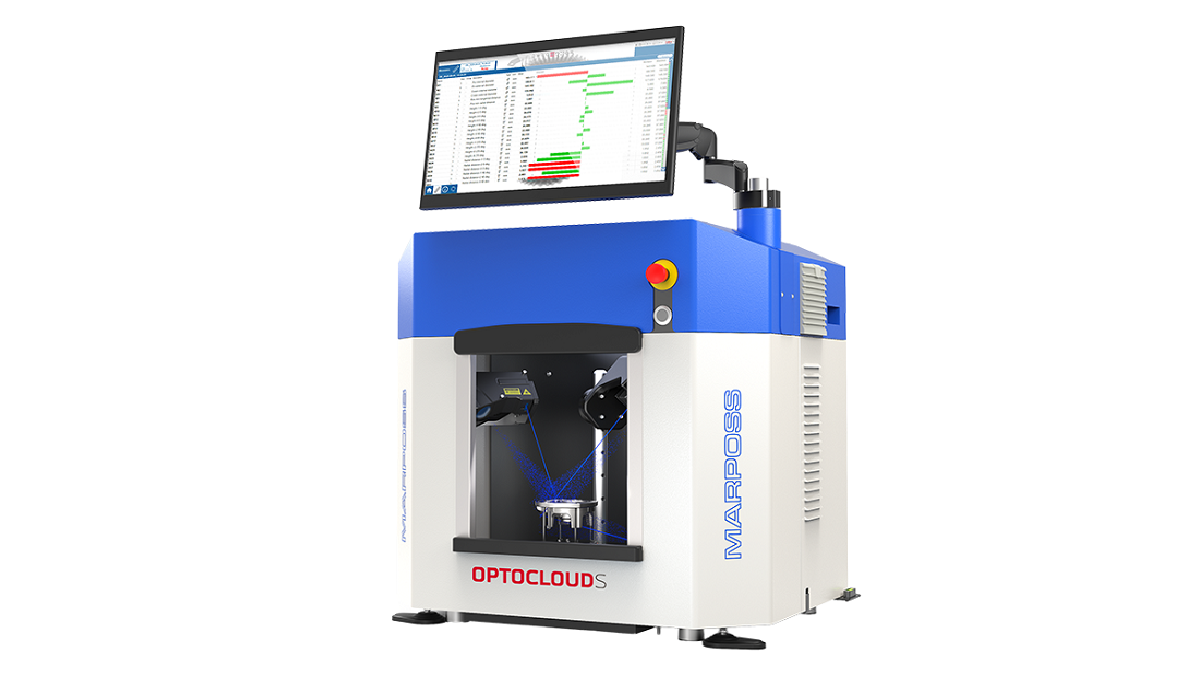

Optocloud S is an all-in-one system designed for ease of use and robustness on the shop floor. Its robust structure protects the optical architecture from vibration, disturbances, and accidental impacts, ensuring long-term stability in industrial environments. The system is intuitive enough for operators with minimal training, reducing dependency on highly specialized metrology personnel.

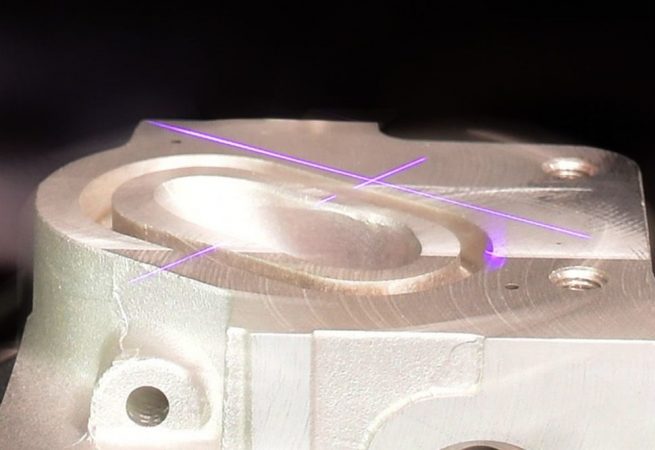

Available in single or multi-laser configurations, the system uses multiple laser profilometers combined with a precision rotary axis to capture full 360° part geometry. In a single cycle, it can measure dozens of features simultaneously – even on complex geometries or mixed-material components.
Each laser is optimized to scan only the region of interest, eliminating wasted acquisition time and improving reconstruction quality. This targeted scanning strategy produces dense, high-quality point clouds while maintaining extremely short cycle times.
Digitalization at the Core of Modern Manufacturing
The evolution of manufacturing toward higher complexity and lower cost per part has made digitalization essential. While many traditional 3D metrology technologies are still focused on offline tasks such as reverse engineering or sampling, the Optocloud line developed by Marposs is designed to operate directly within production workflows.
Optocloud S supports this shift by enabling real-time quality control through in-line optical scanning. It transforms inspection from a separate quality gate into an integrated part of the production process, feeding immediate feedback into manufacturing systems.
This capability is particularly valuable in environments where parts are produced in high volumes and require consistent verification without slowing throughput.
Measurement Performance and Flexibility
Optocloud S reconstructs full 3D geometry in under 30 seconds per cycle, acquiring millions of data points from multiple viewing angles. This allows simultaneous evaluation of dimensional and geometric characteristics, even for complex or structured components.
A key strength of the system lies in its flexibility. The optical architecture is configured around specific part families, enabling efficient measurement of multiple part types without costly retooling. Dedicated fixtures ensure fast and repeatable positioning, supporting high-volume automated loading and unloading operations.
Industrial Applications Across Multiple Sectors
Optocloud S is suited for a wide range of industrial applications, including:
- Die-cast components such as housings, covers, and brackets
- Laminated and stamped parts including rotor and stator stacks
- Mechanical components such as rings and fasteners
- Assemblies such as wound stators and electric motor rotors
- Aerospace, automotive, medical, and industrial automation components
Its ability to handle delicate and complex features, such as soft surfaces, laminated structures, and wound coils, makes it particularly effective where tactile or traditional contact-based systems struggle.
Key Production Benefits
By integrating directly into manufacturing lines, Optocloud S delivers several operational advantages:
- Inspection rates approaching 100% even for complex geometries
- Reduced risk of undetected defects and scrap shipments
- Elimination of bottlenecks from slower tactile or vision-based systems
- Reduced dependency on CMMs and laboratory-based metrology
- Lower equipment footprint by replacing multiple dedicated gauges
- Reduced operator influence, improving repeatability and consistency
These improvements collectively support more stable, efficient, and controlled production processes.
Automation and Industry 4.0 Integration
Optocloud S is designed for both manual and fully automated workflows. In robotic configurations, parts can be loaded, measured, and unloaded without human intervention. Measurement results can be directly transmitted to factory networks, enabling Statistical Process Control (SPC), closed-loop quality feedback, process optimization and automated rework decisions.
This level of integration aligns closely with Industry 4.0 principles, where real-time data drives continuous production improvement.
A Shift Toward Inline Optical Metrology
Optocloud S represents a broader shift in metrology strategy: moving inspection from isolated measurement environments into active production systems. By combining multi-laser scanning, rotary-axis acquisition, and application-specific optical configuration, it delivers fast, repeatable, and scalable inspection for modern manufacturing demands.
As industries continue to prioritize efficiency and digital integration, systems like Optocloud S demonstrate how advanced optical metrology is becoming a core element of production rather than a final checkpoint.
