Back to Hands-On CMM Metrology – Precision Without the Programming

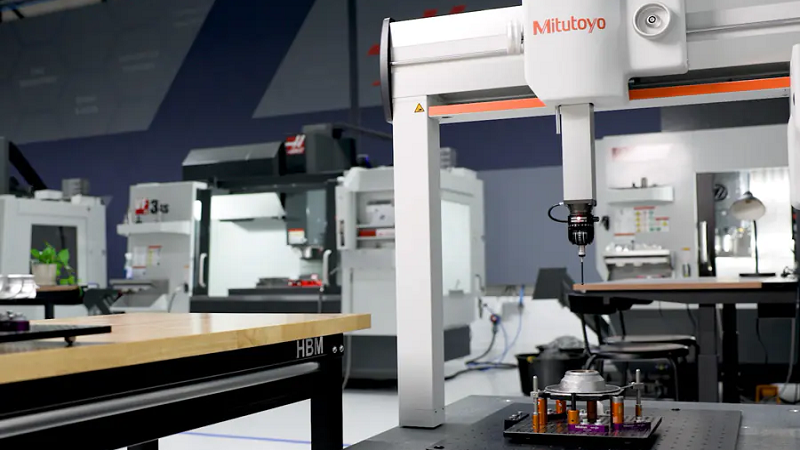

Mitutoyo has expanded its coordinate metrology portfolio with the introduction of the CRYSTA-KM 565, a manual coordinate measuring machine (CMM) designed to deliver reliable dimensional inspection with simplicity, robustness and cost efficiency.
Aimed at organizations seeking precision measurement without the complexity of automated systems, the new CMM provides a practical solution for small manufacturers, workshops, educational institutions and quality laboratories where flexibility and hands-on control remain essential.
A Practical Entry Point to Coordinate Metrology
For many companies, particularly small and medium-sized enterprises (SMEs), the move into coordinate metrology can present challenges related to cost, training and operational complexity. The CRYSTA-KM 565 addresses these concerns by focusing on straightforward manual operation combined with the trusted accuracy associated with Mitutoyo metrology systems.
The system is designed to support a wide range of users including:
- SMEs entering coordinate measurement for the first time
- Technical education and research laboratories
- Toolmaking and prototype workshops
- Quality control and inspection departments
By eliminating the need for programming and automated operation, the CMM enables operators to focus directly on measurement tasks, providing immediate accessibility even for new users.
Engineering Designed for Stability and Accuracy

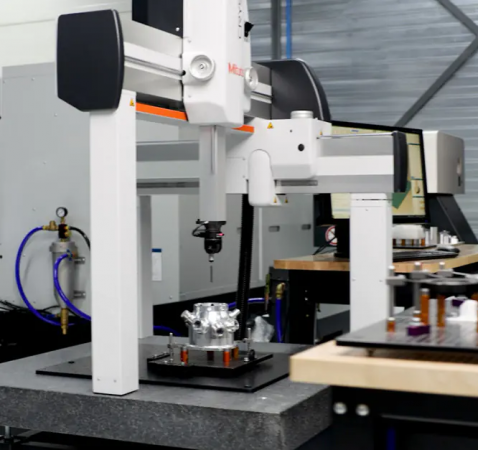

At the core of the CRYSTA-KM 565 is a mechanical architecture optimized for rigidity and measurement stability. The structure incorporates an ultra-rigid alloy platform, combined with a one-piece granite base, providing a stable reference surface for dimensional inspection.
The granite base integrates M8 threaded inserts, allowing flexible fixture mounting and supporting a wide variety of measurement setups. This design enables users to adapt the system easily for different components and inspection tasks.
To further enhance structural performance, engineers applied Finite Element Method (FEM) optimization during development. This approach improves stiffness while enabling smooth movement across the machine’s measuring axes, ensuring accurate probing and stable measurement conditions.
Managing Thermal and Environmental Influences
Thermal stability remains a critical factor in precision measurement. The CRYSTA-KM 565 addresses this through rapid thermal diffusion throughout the frame, helping the structure adapt quickly to environmental temperature changes and reducing measurement drift.
The system also incorporates passive vibration damping, which minimizes the influence of external vibrations often present in workshop environments. This capability makes the machine suitable not only for controlled quality labs but also for shop-floor measurement areas where environmental conditions may vary.
Smooth, Precise Motion for Manual Measurement

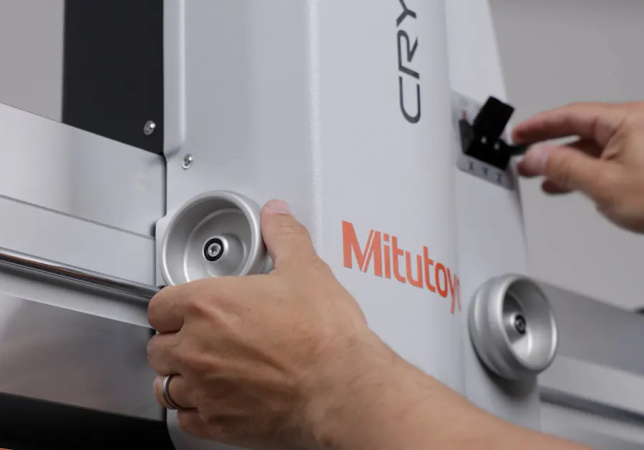

While automated CMMs rely on programmed movement, manual systems depend on smooth and responsive operator control. The CRYSTA-KM 565 achieves this through a combination of precision mechanical elements.
Key motion and positioning features include:
- Rigid air bearings that enable friction-free axis movement
- Friction reducers with near-zero hysteresis for improved responsiveness
- Pneumatic Z-axis counterbalance to support stable vertical motion
- Free access to the measurement area, improving ergonomics for operators
These features allow users to move the probe quickly and accurately while maintaining full control over the measurement process.
High-Resolution Measurement Capability
Accuracy is supported by 0.1 µm resolution scales, paired with dynamic signal processing to ensure reliable position data during measurement operations. This combination enables the system to deliver the precision expected while maintaining the straightforward usability associated with manual CMMs.
For many applications, such as prototype inspection, tooling verification and small-batch production checks, this level of resolution provides more than sufficient measurement capability without the complexity of automated inspection routines.
Because the system requires no programming or automated setup, it can be quickly deployed for one-off inspections or small-batch measurement tasks where flexibility is essential.
Precision Without Complexity
In an era increasingly dominated by automated inspection systems and digital manufacturing environments, the CRYSTA-KM 565 demonstrates that manual metrology still has a valuable role in modern quality control.
By combining a robust mechanical design, high-resolution measurement capability and operator-friendly access, Mitutoyo’s new manual CMM provides a practical inspection solution for organizations seeking precision measurement without operational complexity.
For manufacturers requiring dependable dimensional inspection, whether for prototypes, tooling verification or routine quality checks, the CRYSTA-KM 565 delivers a straightforward yet capable approach.
