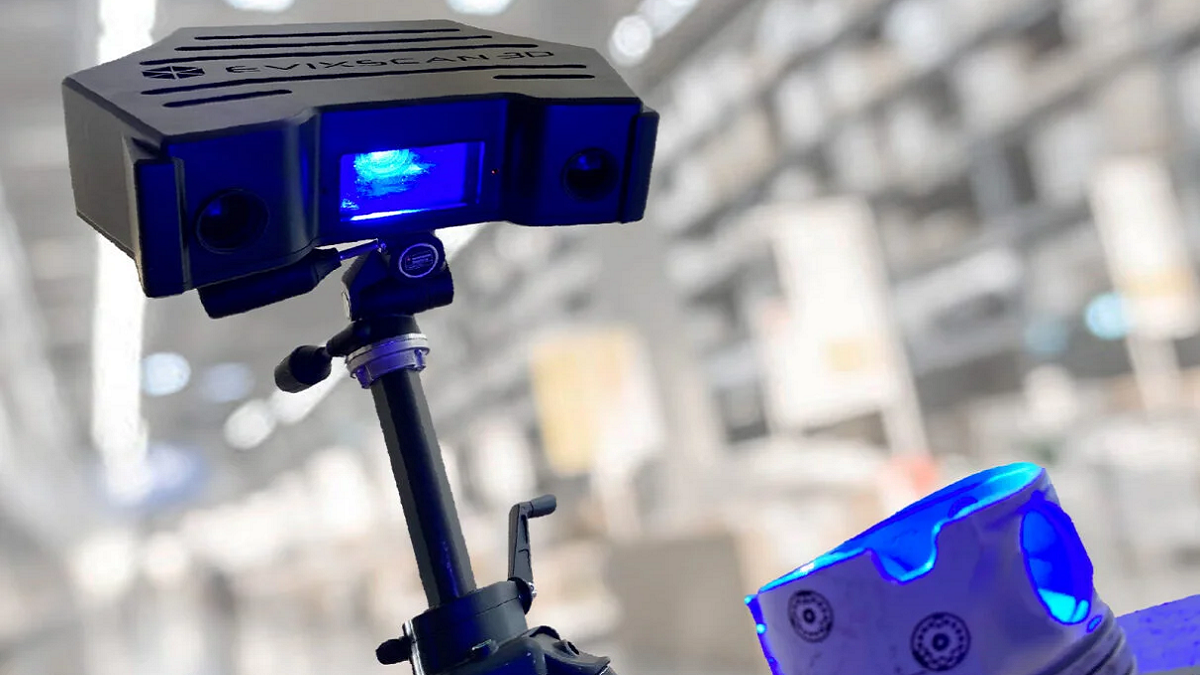

The Role of 3D Scanning Technology in Advanced Quality Control Systems
Today’s manufacturing environment demands ever-higher efficiency while maintaining strict product quality standards. The concept of Industry 4.0 addresses these challenges by integrating digital technologies and cyber-physical systems into the production ecosystem. At the heart of this transformation is the implementation of tools that enable real-time data acquisition, rapid adaptability, and minimal human intervention in repetitive or complex tasks.
Within this context, 3D scanning technologies play a pivotal role by enabling high-precision, non-contact, and fully digital measurement solutions. These systems provide accurate dimensional data even for complex geometries, allowing for faster and more reliable quality control processes.
Tailored Systems for Industrial Conditions
Advanced 3D scanning systems can be customized to meet specific application requirements. Key factors considered during system design include:
- Measurement accuracy and resolution,
- Required cycle time,
- Environmental conditions (e.g. temperature, humidity, lighting, vibrations, dust),
- Integration capabilities with production lines.
By considering these elements, it is possible to develop measurement systems that seamlessly cooperate with other segments of the production line, ensuring efficient and synchronized inspection without disrupting the manufacturing flow.

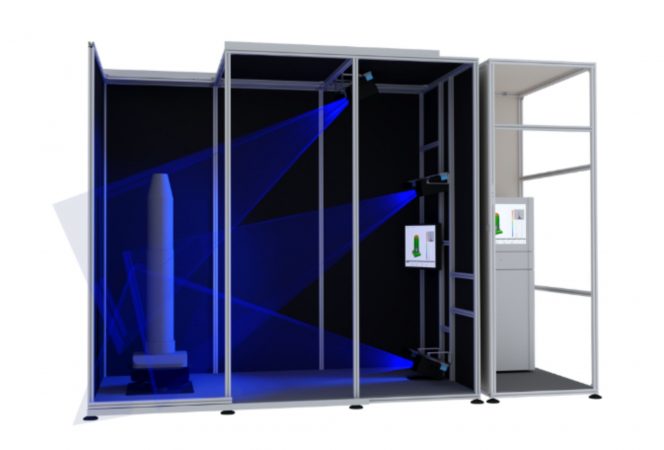

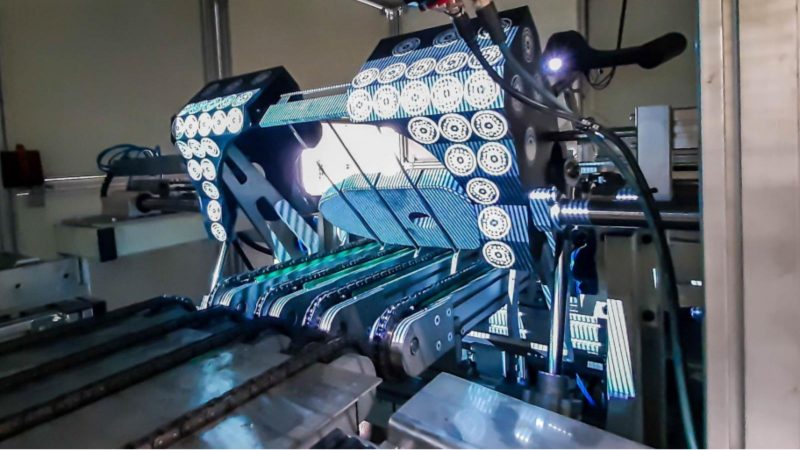

Multi-Scanner Measurement Platforms
To capture complete and detailed geometry of complex objects, multi-scanner configurations are often used. These systems employ two or more 3D scanners operating on a single measurement platform, enabling sequential or parallel scanning from multiple angles. Data from each scanner is automatically aligned and merged into a single high-resolution 3D model.
Each platform is tailored to specific use cases, with adjustable parameters such as measurement volume, resolution, accuracy, and sampling density. For areas that are hard to reach using optical methods alone, contact optical probes can be integrated into the system. Their measurements are merged with the scanned geometry to enhance data completeness.
With the right configuration, these systems can operate fully or semi-automatically, minimizing the need for operator involvement and ensuring repeatable, high-quality results.
Automated Analysis and Reporting
3D scanning systems support automated comparison between measured parts and reference models, typically in CAD format. This enables:
- Go/No-Go (OK/NOK) evaluations,
- Dimensional deviation analysis,
- Automatic generation of inspection reports.
Measurement data can be archived and used for traceability, quality auditing, and compliance with industry standards. The software tools used in conjunction with these systems offer capabilities similar to those of virtual coordinate measuring machines (CMMs), but with improved flexibility and faster cycle times.
Structured light technology provides excellent repeatability and high-quality surface reproduction, making it suitable for applications requiring precision and reliability.
Automated Scanning Stations
To further support inline inspection, automated scanning stations are being developed. These systems integrate a 3D scanner with linear positioning units and rotary tables, allowing fully automatic scanning from multiple positions and angles. Auto-calibration features are included to maintain measurement consistency over time.
Such solutions are ideal for serial inspection of repeatable components, where scanning and report generation must be performed continuously with minimal human supervision.

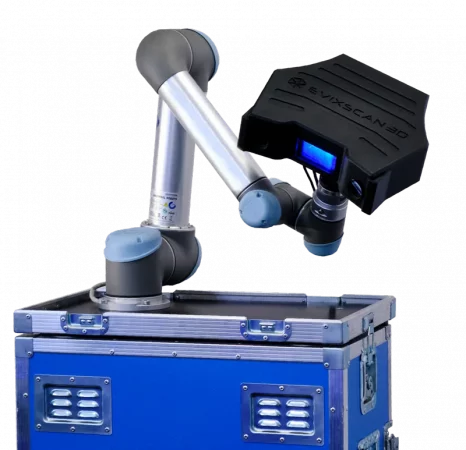

Integration with Robots and Cobots
A significant advancement in quality automation is the integration of 3D scanning with industrial robots and collaborative robots (cobots). These solutions allow for:
- Fully automated inspection without operator involvement,
- Robotic arm path correction based on calibration artifacts within the scanning workspace,
- Use of cobots to pick and place parts within the scanner’s field of view.
This level of automation supports high-throughput, high-accuracy quality control even in complex or dynamic production environments.
3D Scanning as a Foundation for Industry 4.0
3D scanning is fully aligned with the goals of the Fourth Industrial Revolution. The ability to collect, analyze, and archive dimensional data at various stages of production supports critical quality processes such as:
- Real-time decision making,
- Root cause analysis,
- Process optimization,
- Full traceability of manufactured parts.
This is particularly relevant in industries where safety and compliance are essential, such as automotive, aerospace, defense, and medical manufacturing.
By integrating measurement systems directly into the production environment, manufacturers can move from reactive to predictive and adaptive quality assurance models.
3D Scanning Technology Meets Challenges of Industry 4.0
3D scanning is becoming a cornerstone of modern quality control systems. It enables precise, repeatable, and fully digital measurement of components, while supporting automation, traceability, and intelligent data management. As production systems become more complex and data-driven, 3D scanning technology provides a scalable and reliable solution to meet the challenges of Industry 4.0.
