Physik Instrumente Expands Portfolio of Piezo Flexure Stages for Ultra-Precise Motion Control
Physik Instrumente (PI), a leader in nanopositioning and precision motion control technologies, offers an extensive portfolio of piezo flexure stages designed to deliver ultra-precise positioning in demanding industrial and research environments.
Flexure-guided piezo stages provide significant advantages over traditional motorized stages in many advanced motion control applications, ranging from astronomical instrumentation to Z-axis wafer metrology.
Designed for nanometer-level positioning accuracy and high dynamic performance, PI’s piezo flexure stages combine friction-free flexure guidance with high-force, high-resolution piezoelectric actuation. Closed-loop position control is achieved through a range of high-resolution absolute sensors tailored to the target application. This combination enables exceptional repeatability, fast settling times, and virtually wear-free operation — making the stages ideal for applications that require stable, high-bandwidth motion over small travel ranges.
Precision and Stability by Design
Unlike conventional bearing systems, monolithic flexure guides eliminate backlash, stiction, and mechanical play. This design architecture enables:
- Sub-nanometer resolution
- High structural stiffness for rapid response times
- Deterministic, highly repeatable motion
- Long operational lifetime without mechanical wear
- High load capacity relative to system size
Space-Tested Reliability
PI’s piezo flexure stages incorporate the company’s patented PICMA multilayer piezo actuators, which were selected by NASA for a Mars mission after successfully completing 100 billion test cycles without failure. This level of durability highlights the reliability of the technology in mission-critical environments.
Compact Systems for High-Performance Motion
Optimized for integration into OEM equipment and automated production platforms, PI’s piezo flexure stages are available in single-axis, stacked multi-axis, and parallel-kinematic configurations. The systems support:
- Linear travel ranges from tens of microns to over one millimeter
- Fast steering mirror applications for image stabilization, satellite communications, and laser processing

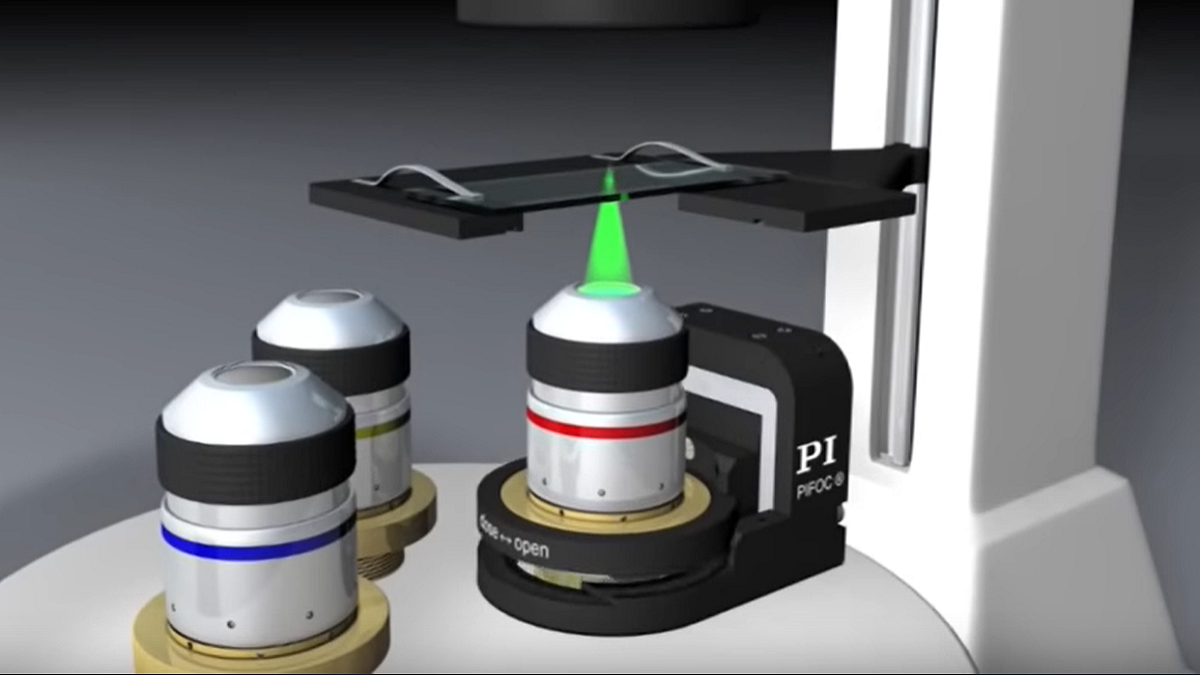

- High-speed focusing for microscopy and surface metrology
- Multi-axis positioning (XY, XYZ, and tip/tilt) for scanning, optics, and photonics alignment
- Load capacities ranging from hundreds of grams to hundreds of kilograms
- Operation in vacuum and cleanroom environments
When combined with PI’s high-performance digital motion controllers and advanced scanning or alignment firmware, these stages enable high-throughput testing and production in automated optics and fiber-optic assembly workflows.
Their fast response and high positional stability make them particularly well suited to active alignment and high-speed scanning tasks where conventional motorized stages cannot meet bandwidth requirements.
A Scalable Motion Platform
With decades of expertise in piezoelectric motion control, PI provides not only the mechanical positioning platform but a complete motion ecosystem that includes controllers, software, alignment algorithms, and system integration support. This scalable approach allows users to transition efficiently from laboratory setups to fully automated production environments.
Applications Across Advanced Industries
PI’s piezo flexure stages support a wide range of high-precision applications, including atomic force microscopy, semiconductor wafer inspection and metrology, silicon photonics alignment and packaging, laser micro-machining, super-resolution microscopy, and quantum or cryogenic positioning systems.
For more information: www.pi-usa.us
