Advancing Non-Contact Fiber Orientation Measurement in Composite Materials
In an era where lightweight composites are integral to aerospace, automotive, and energy applications, ensuring the structural integrity and performance of fiber-reinforced materials is critical. A key factor influencing these properties is fiber orientation. Traditional inspection methods often fall short in providing fast, reliable, and highly detailed fiber orientation data without damaging the material. Enter the FiberScanner3D, world’s first laboratory-based X-ray Tensor Tomography, cutting-edge solution designed to deliver non-contact, high-resolution fiber orientation measurements for composites.
The Need for Precision in Fiber Orientation Measurement
Fiber-reinforced composites derive their strength and stiffness from the directional arrangement of fibers within a polymer matrix. Any deviation in fiber alignment can compromise structural performance and durability. Manufacturers have long sought an inspection solution that provides accurate and repeatable measurements while keeping up with modern production speeds.

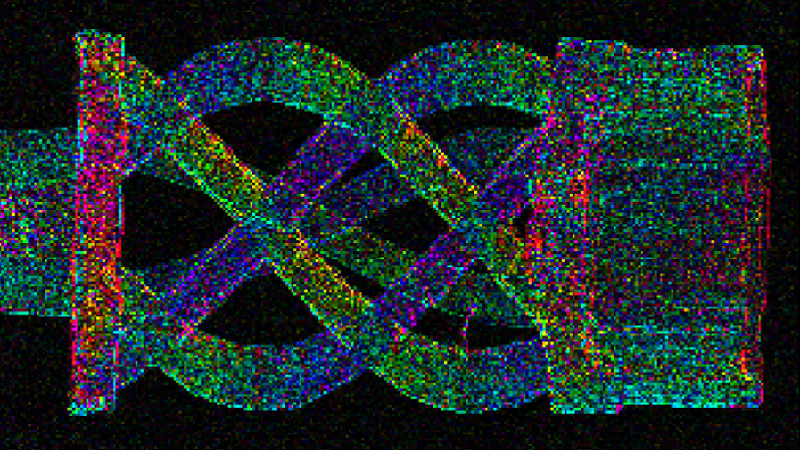

The FiberScanner3D addresses this need by utilizing advanced optical scanning technology to map fiber orientations in three dimensions with exceptional detail. This enables engineers and quality professionals to validate part conformity, optimize manufacturing processes, and predict structural performance more accurately.
Non-Contact Optical Scanning System

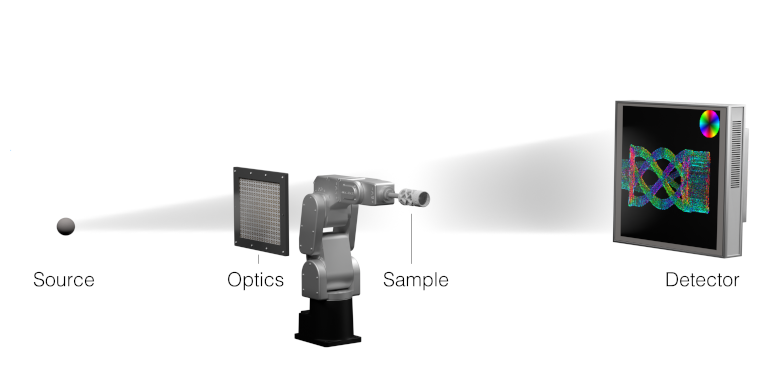

Unlike traditional contact-based methods or destructive testing, FiberScanner3D employs laboratory-based X-ray Tensor Tomography (XTT) to non-destructively characterize the internal anisotropic structure of composites. Instead of imaging individual fibers directly, the system analyzes the directional scattering of X-rays within the material to reconstruct a full 3D map of fiber orientations, degree of alignment, and volume fraction. This unique approach, previously only available at synchrotron facilities, is now accessible in a standard laboratory setting.
Key technological features include:
-
High-resolution scanning for rapid data acquisition.
-
Automated analysis software capable of identifying local variations and global fiber patterns.
-
Compatibility with curved and complex geometries, essential for real-world composite structures.
-
Integration with CAD and simulation tools, enabling engineers to compare actual fiber orientations against design intent.
This combination makes FiberScanner3D suitable for inline inspection, quality audits, and even reverse engineering of composite parts.
The FiberScanner3D offers several benefits that resonate with modern Industry 4.0 initiatives:
-
Non-destructive and repeatable inspection: Eliminates the need to cut samples for destructive testing.
-
Fast throughput: Supports integration into automated production lines, enabling real-time feedback.
-
Improved process control: Provides actionable data to adjust molding and lay-up processes for better part consistency.
-
Enhanced product performance: Better understanding of fiber orientation leads to improved predictions for load-bearing behavior and fatigue life.
By capturing high-fidelity orientation maps, FiberScanner3D empowers engineers to fine-tune production parameters, reduce scrap rates, and accelerate development cycles.
A Step Toward Smart Composite Manufacturing
FiberScanner3D represents a leap toward smarter composite manufacturing. By integrating precise fiber orientation measurement into the digital thread, manufacturers can create closed-loop feedback systems allowing design, simulation, production, and quality control data to seamlessly interact, reducing errors and enhancing product performance.
